剑指offer-26、二叉搜索树与双向链表

2025-09-02 09:30:02基础资料围观187

本篇文章分享剑指offer-26、二叉搜索树与双向链表,对你有帮助的话记得收藏一下,看Java资料网收获更多编程知识

题⽬描述

输⼊⼀棵⼆叉搜索树,将该⼆叉搜索树转换成⼀个排序的双向链表。要求不能创建任何新的结点,只能调整树中结点指针的指向

思路及解答

递归中序遍历(推荐)

根据二叉搜索树的特点:左结点的值<根结点的值<右结点的值,我们不难发现,使用二叉树的中序遍历出来的数据的数序,就是排序的顺序。因此,首先,确定了二叉搜索树的遍历方法。

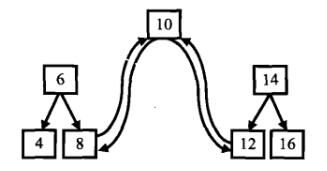

我们看下图,我们可以把树分成三个部分:值为10的结点、根结点为6的左子树、根结点为14的右子树。根据排序双向链表的定义,值为10的结点将和它的左子树的最大一个结点链接起来,同时它还将和右子树最小的结点链接起来。

按照中序遍历的顺序,当我们遍历到根结点时,它的左子树已经转换成一个排序好的双向链表了,并且处在链表中最后一个的结点是当前值最大的结点。

具体思路如下,可以利用BST中序遍历的有序性,在遍历过程中调整指针:

  1. 中序遍历​:按照左子树→根节点→右子树的顺序遍历
  2. 指针调整​:维护一个pre指针记录前驱节点,将当前节点与前驱节点双向连接
  3. 头节点处理​:第一个被访问的节点(最左节点)作为链表头节点
class TreeNode {
    int val;
    TreeNode left;
    TreeNode right;
    TreeNode(int x) { val = x; }
}

public class Solution {
    private TreeNode pre = null; // 记录前驱节点
    private TreeNode head = null; // 链表头节点

    public TreeNode convert(TreeNode root) {
        if (root == null) return null;

        // 中序遍历左子树
        convert(root.left);

        // 处理当前节点
        if (pre == null) {
            head = root; // 第一个节点作为头节点
        } else {
            pre.right = root; // 前驱节点的next指向当前节点
            root.left = pre;  // 当前节点的prev指向前驱节点
        }
        pre = root; // 更新前驱节点为当前节点

        // 中序遍历右子树
        convert(root.right);

        return head;
    }
}
  • 时间复杂度​:O(n),每个节点被访问一次
  • 空间复杂度​:O(n),递归调用栈的空间(最坏情况下树退化为链表)

迭代中序遍历(栈辅助)

使用栈模拟递归过程,避免递归带来的栈溢出风险:

  1. 栈辅助遍历​:利用栈实现中序遍历的非递归版本
  2. 指针调整​:同样维护pre指针记录前驱节点
  3. 头节点标记​:使用布尔变量标记第一个节点作为链表头
public class Solution {
    public TreeNode convert(TreeNode root) {
        if (root == null) return null;

        Stack<TreeNode> stack = new Stack<>();
        TreeNode pre = null;
        TreeNode head = null;
        boolean isFirst = true; // 标记第一个节点

        while (root != null || !stack.isEmpty()) {
            // 走到最左节点
            while (root != null) {
                stack.push(root);
                root = root.left;
            }

            root = stack.pop();

            if (isFirst) {
                head = root; // 第一个节点作为头节点
                pre = head;
                isFirst = false;
            } else {
                pre.right = root; // 连接前驱和当前节点
                root.left = pre;
                pre = root;
            }

            root = root.right; // 处理右子树
        }

        return head;
    }
}
  • 时间复杂度​:O(n)
  • 空间复杂度​:O(n),栈的空间消耗

Morris遍历

利用Morris遍历实现O(1)空间复杂度的中序遍历:

  1. 线索化​:利用叶子节点的空指针指向中序前驱或后继
  2. 指针调整​:在遍历过程中实时调整指针关系
  3. 无栈递归​:不需要额外栈空间或递归调用
public class Solution {
    public TreeNode convert(TreeNode root) {
        TreeNode pre = null;
        TreeNode head = null;
        TreeNode current = root;

        while (current != null) {
            if (current.left == null) {
                // 处理当前节点
                if (pre == null) {
                    head = current;
                } else {
                    pre.right = current;
                    current.left = pre;
                }
                pre = current;

                current = current.right;
            } else {
                // 找到当前节点的中序前驱
                TreeNode predecessor = current.left;
                while (predecessor.right != null && predecessor.right != current) {
                    predecessor = predecessor.right;
                }

                if (predecessor.right == null) {
                    predecessor.right = current; // 建立线索
                    current = current.left;
                } else {
                    // 处理当前节点
                    predecessor.right = null;
                    if (pre == null) {
                        head = current;
                    } else {
                        pre.right = current;
                        current.left = pre;
                    }
                    pre = current;

                    current = current.right;
                }
            }
        }

        return head;
    }
}
  • 时间复杂度​:O(n)
  • 空间复杂度​:O(1),只使用固定数量的指针变量

文章来源:https://www.cnblogs.com/seven97-top/p/19066173
